How to register a resource

A resource is an upstream API protected by edge. Registering it tells edge where to forward traffic, who may call it, and what must be true for each individual endpoint. For the conceptual picture, see Entities.

Before you start

Have these ready:

The absolute URI of the upstream API.
The clients that will call it — they must already be registered (How to register a client).
The list of endpoints (method + path) you want to expose.
A decision on whether the resource is internal or public (see step 3).

1. Open the Resources screen

Select the tenant, then open Resources. Each card shows the resource URI, its resource ID, and badges for Internal and Secret Rotation.

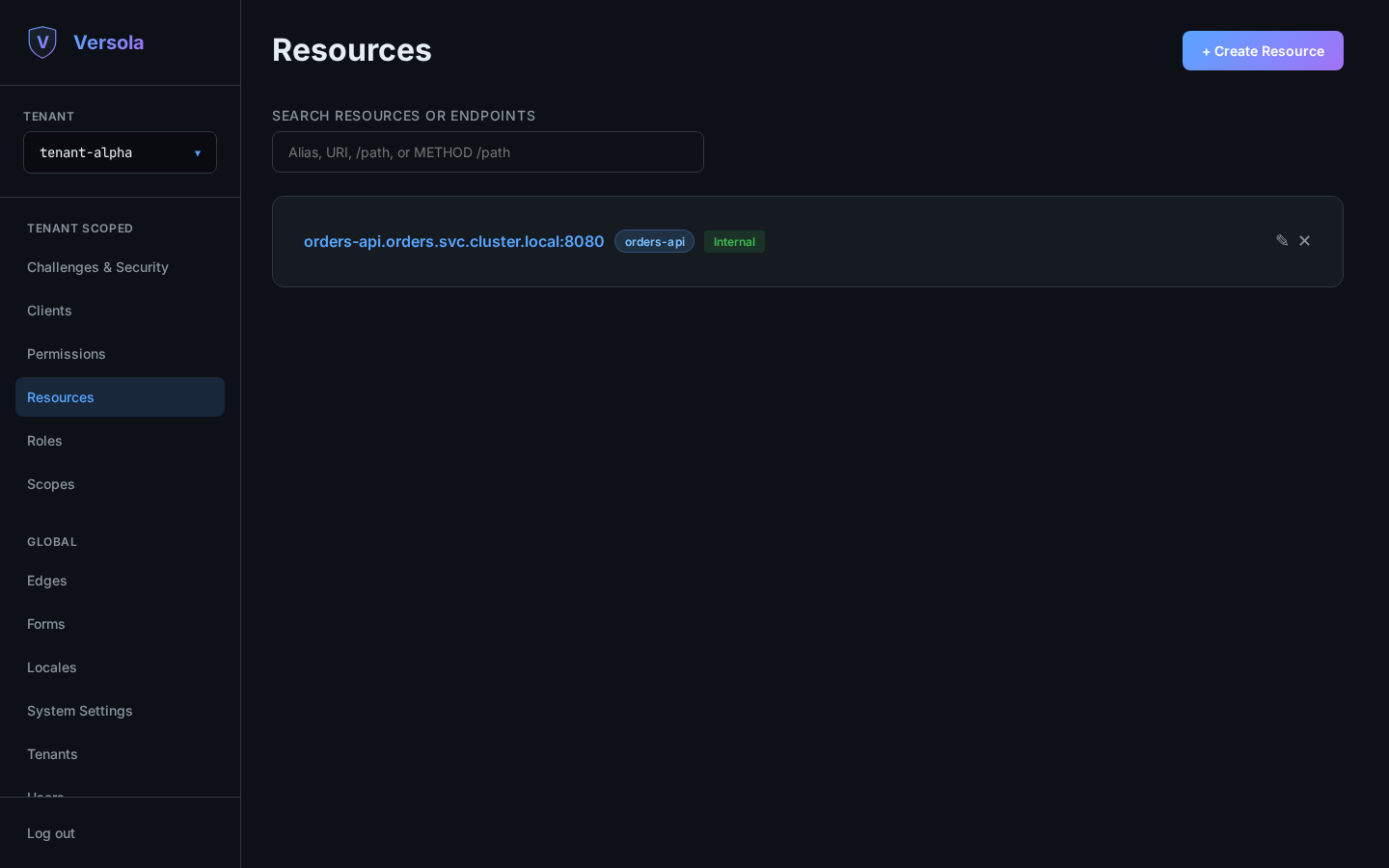

Resources list in the Versola admin console — Resources → the list of resources registered in the selected tenant

Clicking a card expands it to show the audience and the registered endpoints.

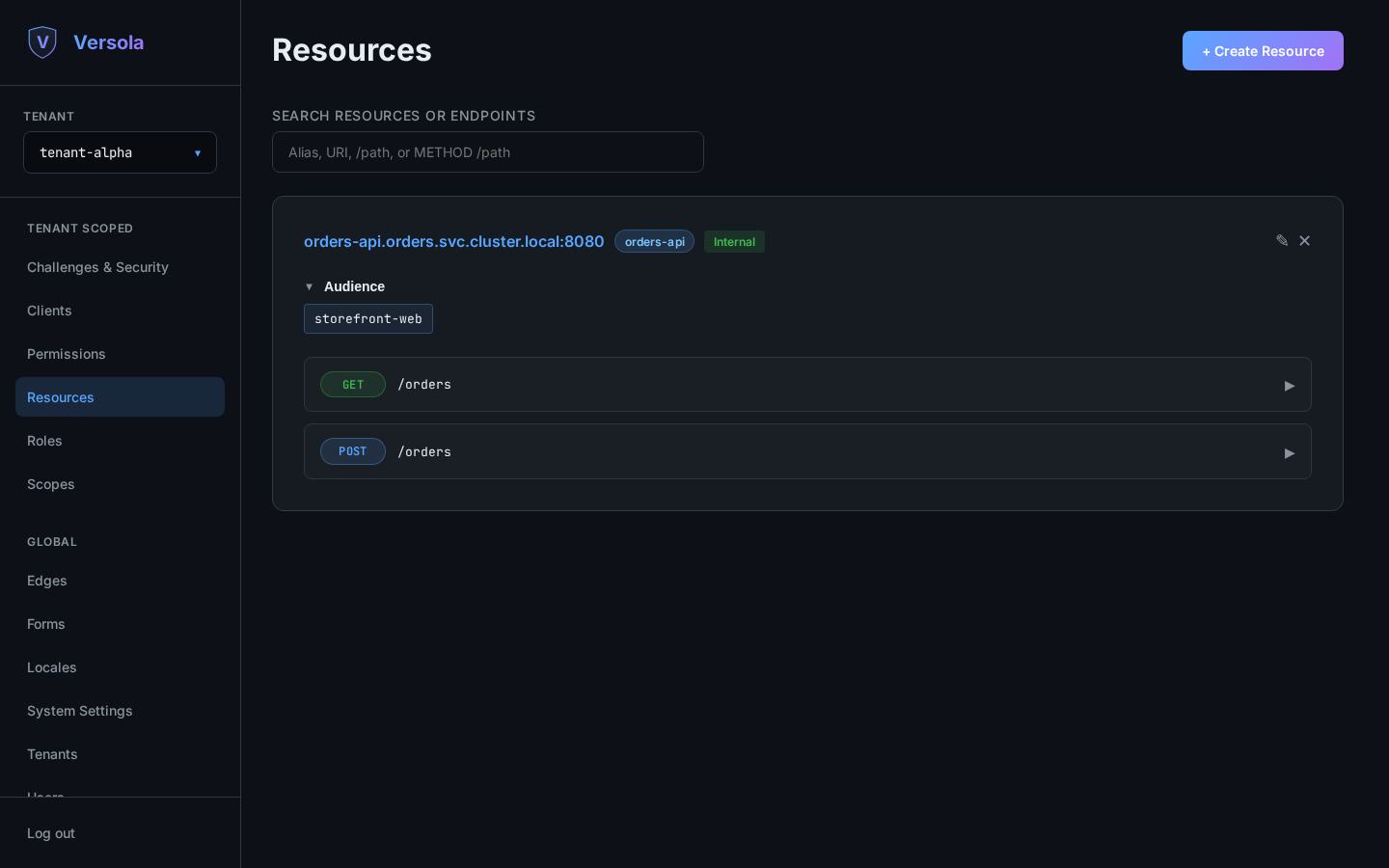

Expanded resource card showing audience and endpoints — An expanded resource card

2. Start a new resource

Press + Create Resource.

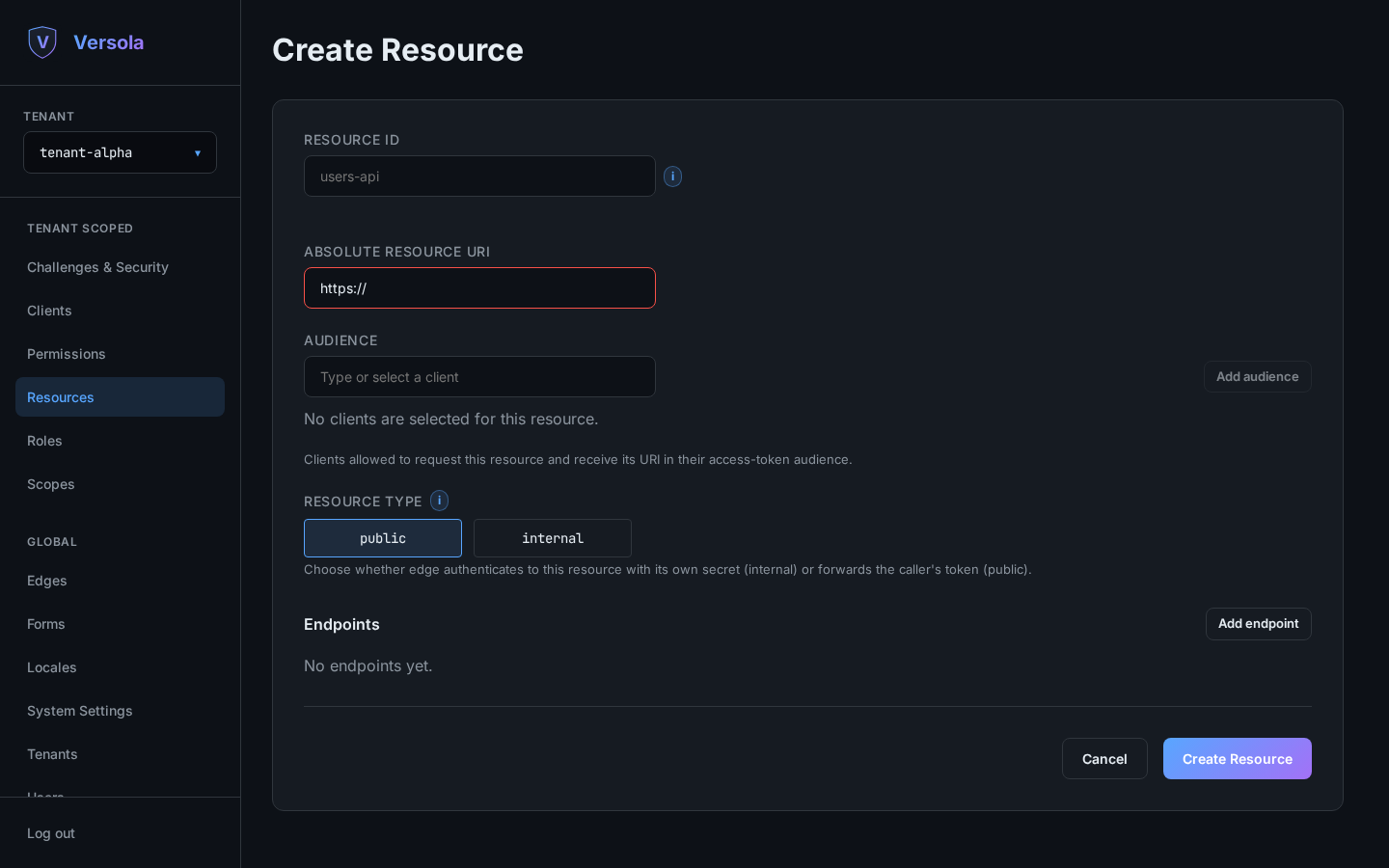

Empty resource creation form — Create Resource — the empty form

3. Fill in identity, audience and type

Resource ID — lowercase letters, digits and hyphens, starting with a letter. It becomes part of the proxy path: edge forwards /resources/{resourceId}/* to the resource URI. It is immutable after creation, and the value edge is reserved.

Absolute resource URI — an absolute URI with an empty path, no query and no fragment, for example http://invoices-api.billing.svc.cluster.local:8080 for a service reachable inside the cluster, or https://invoices.example.com for one exposed externally. The resource:// scheme is reserved.

Audience — the clients allowed to request this resource. Start typing a client ID, pick it from the suggestions, and press Add audience. A client that is not listed here cannot obtain a token targeting this resource, and auth rejects the request at /authorize or /token.

Resource type:

Internal — Versola generates a secret and edge authenticates upstream with Authorization: Basic {resourceId}:{secret}. The caller’s own token never reaches the upstream API, which therefore needs no token validation of its own — which also means the upstream service must live in an internal zone with no direct access from the web; edge is its only caller. Tokens issued for it carry resource://{resourceId} in aud, not the resource URI. This is the usual choice for services that live behind edge.
Public — no secret. edge runs the exact same checks — audience, roles/permissions, the endpoint’s allow expression — but instead of its own Basic credentials it forwards the caller’s access token unchanged, and the upstream API is responsible for validating it itself. Tokens issued for it carry the resource’s own URI in aud.

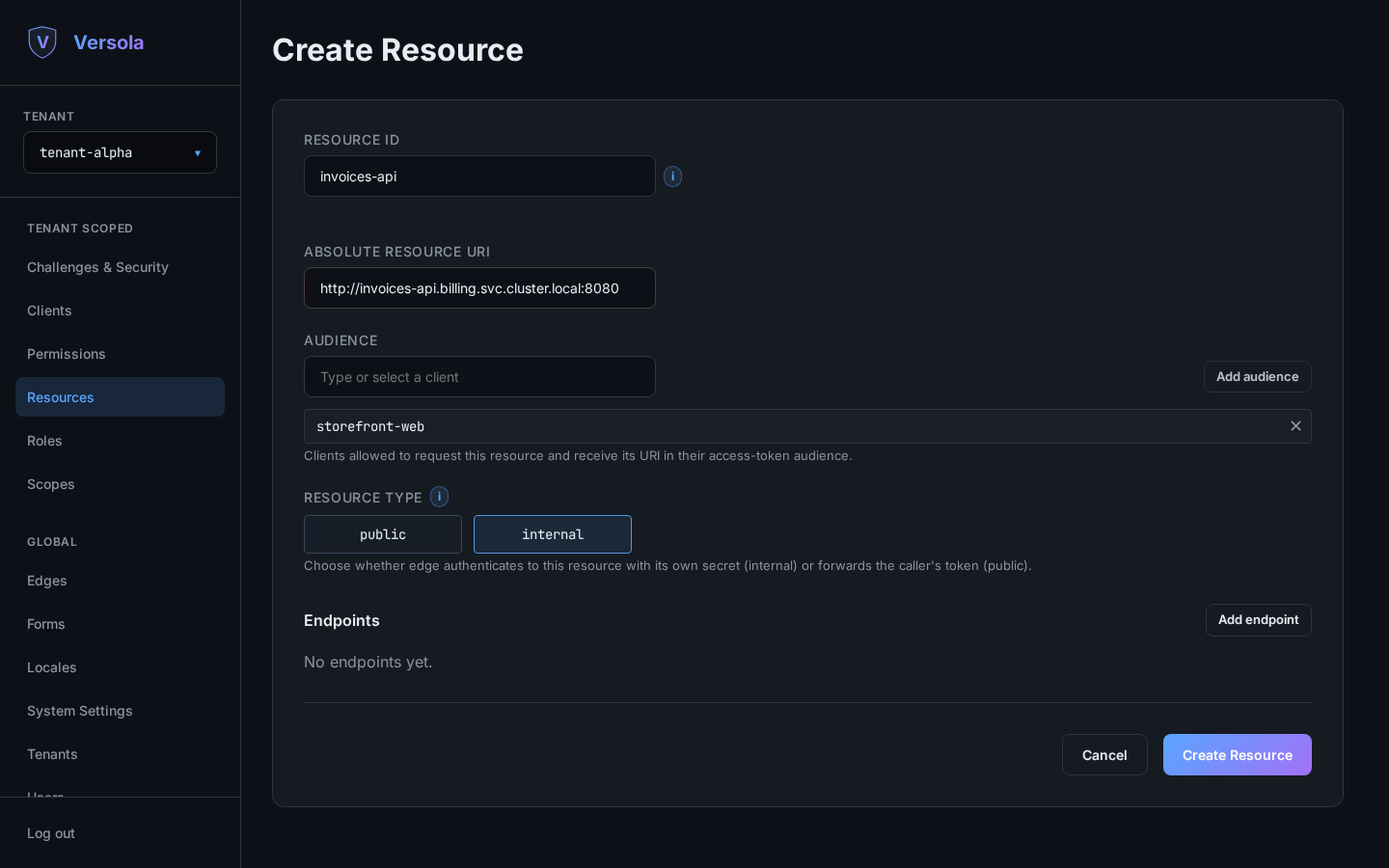

Resource form with ID, URI, audience and internal type filled in — Resource ID, URI, audience and type

4. Add endpoints

Press Add endpoint for each method + path pair you want to expose. An endpoint is the unit of authorization — everything enforced per request is configured here.

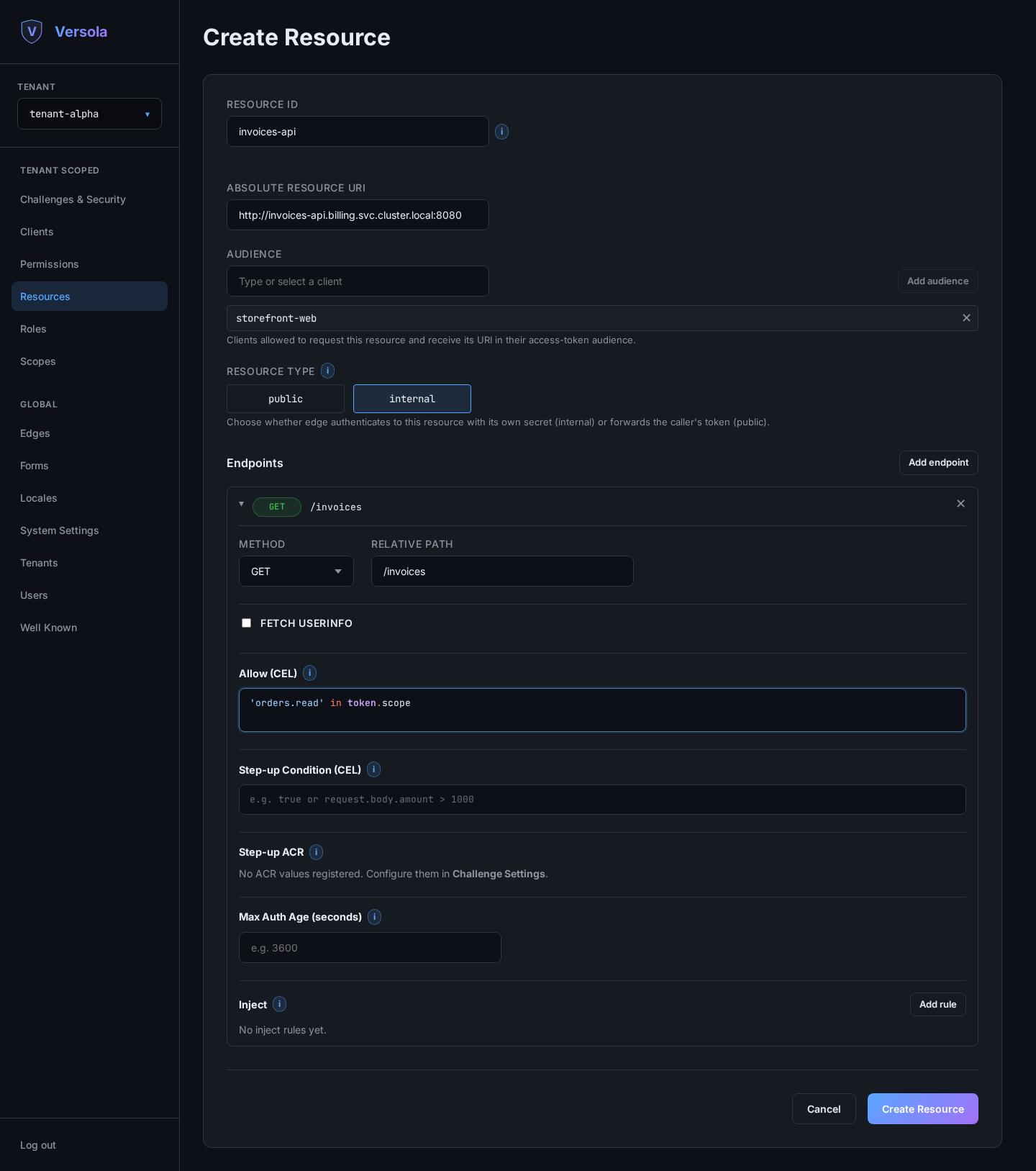

Endpoint editor showing method, path, allow expression, step-up and inject settings — The endpoint editor

Method and relative path. The path is matched against the part of the request that follows /resources/{resourceId}. Each segment is either literal — lowercase or uppercase letters, digits and hyphens — or a {name} parameter that matches exactly one segment, as in /tenants/{tenantId}/orders/{orderId}. Parameter names must be unique within the path, and two endpoints of the same method may not differ only in their parameter names. A literal endpoint always wins over a parameterized one, so /users/me keeps its own rules next to /users/{userId}. Metrics and traces are labelled with the registered template, never with the matched values.

Fetch userinfo. Enable it to load the resource owner’s claims from auth before evaluating the rules. The claims become available to CEL as user. It costs an extra call per request, so enable it only where an expression actually needs it.

Allow (CEL). A boolean expression that must return true for the call to be authorized. Leaving it empty skips the check. Available roots:

Root	Contents
`token`	Claims of the validated access token — `token.sub`, `token.scope`, …
`user`	Userinfo claims, only when Fetch userinfo is enabled
`request.path.params`	Path parameters matched by the endpoint’s `{name}` segments
`request.query` / `request.queryAll`	Query parameters, first value / all values
`request.headers` / `request.headersAll`	Request headers, first value / all values
`request.body`	Parsed JSON body, when the content type is `application/json`

For example:

"read" in token.scope && user.department == "engineering"

The console validates the expression before saving, so a syntax error or a non-boolean result blocks the save rather than failing at request time.

Step-up condition and ACR. When the step-up condition evaluates to true, the caller must have reached the given assurance level; otherwise edge asks them to re-authenticate (RFC 9470). Use it to protect the sensitive subset of an otherwise ordinary API.

Max auth age. Reject the call if the owner authenticated more than this many seconds ago, regardless of token validity.

Inject. Each rule writes a computed value into the upstream request — a header, a query parameter, or a top-level field of the JSON body. The value is a CEL expression over the same roots as Allow. Injected values overwrite anything the client supplied, so this is the safe way to pass an authenticated identity upstream, for example a x-user-id header holding token.sub.

5. Create and store the secret

Press Create Resource. For an internal resource, Versola generates its secret and shows it once.

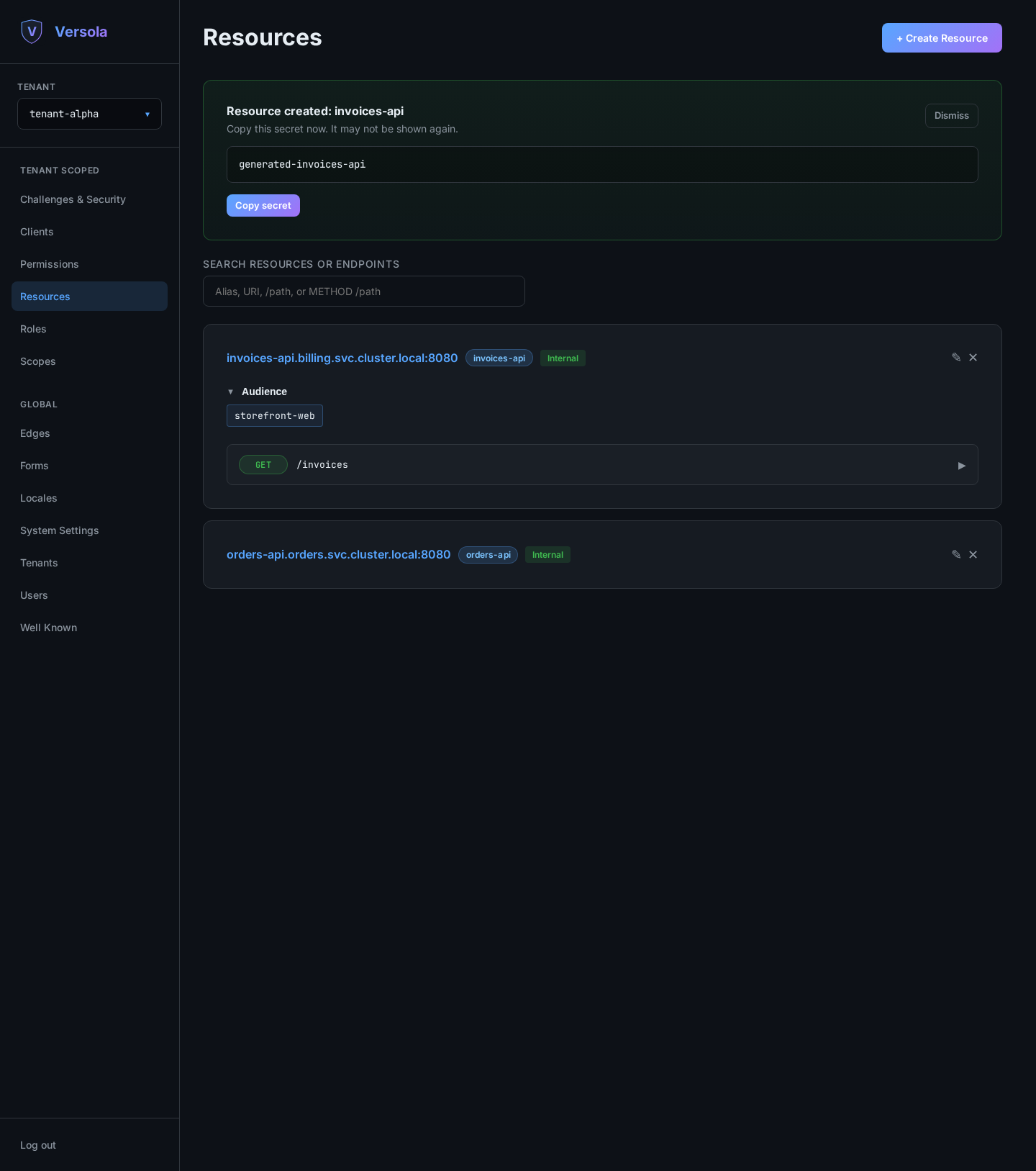

Banner showing the newly generated resource secret — The resource secret is displayed only once — copy it before dismissing the banner

Configure the upstream service to accept HTTP Basic credentials with the resource ID as the username and this secret as the password.

6. Make the endpoints reachable

Registering an endpoint does not by itself grant anyone access. To complete the wiring:

Create a Permission and attach the endpoints it should unlock.
Attach that permission to a Role, and assign the role to users in this tenant — or, for a client_credentials integration, attach the permission directly to the client.

Until an endpoint is covered by a permission the caller holds, edge answers 403.

Rotating a resource secret

Open the resource for editing and press Rotate Secret. The new secret is shown once and the previous one stays valid, with a Secret Rotation badge on the card. Configure the upstream service to accept both the old and the new secret before doing anything else — edge may still be using the old one while you deploy. Once the upstream is confirmed to accept both, press Activate new secret: this removes the old secret from edge’s configuration, and from that point the upstream should accept only the new one.
